Sole ZOOMLION Tower Crane Distributor for Canada
The Future of Tower Cranes Is Here.
The ZOOMLION tower crane range comes into Canada through QnQ: a modern range built for demanding North American construction environments — flat-top, topless hydraulic luffing jib and construction hoists, new or used, lease or purchase. Specified against the job rather than the catalogue.
What we sell
Tower Cranes, Matched to the Build.
The crane is matched to the pour schedule, the site footprint and the budget. Because we also supply ASCOREL anti-collision, several cranes over one site can be planned from day one.
18 Tower Cranes12 flat-top and 6 topless hydraulic luffing jib, as ZOOMLION list them for North America
5 t to 200 tMaximum load, from the R90 flat-top up to the R4300
Up to 85 mThe longest jib in the range, on the R630 flat-top
Choosing the crane
3 Families Cover the Whole Range.
Most of the people we quote are running a project, not specifying machinery. The choice is more straightforward than the terminology suggests — 1 question sorts each family from the next.
Flat-Top
12 models, from the R90 to the R4300. ZOOMLION build the R series on their round tenon mast section, with all-pin connections, anti-collision and digital control against overload, and remote monitoring of the crane's operating status.
Topless Hydraulic Luffing Jib
6 models, RL90 to RL315. ZOOMLION publish the RL series in two working modes, luffing and flat-top, with a maximum luffing angle of 87°, and the jib raised on a hydraulic cylinder instead of an A-frame and rope-pulley system.
Construction Hoist
14 SC series configurations listed for North America, single and double cage, with rated speeds from 40 to 90 m a minute.
The RL series
One Machine, Two Working Modes.
ZOOMLION publish the RL series in a luffing mode and a flat-top mode, and print a load chart for each. The jib is raised on a hydraulic cylinder: against a conventional luffing jib crane, ZOOMLION state that the A-frame, the luffing mechanism and the rope-pulley system are not required.
- Two Working Modes
ZOOMLION give load charts for luffing mode without the trolley, luffing mode with the trolley, and trolleying mode with the jib horizontal. The maximum luffing angle is 87°.
- Topless
Topless Hydraulic Luffing Jib Crane is ZOOMLION's own name for the family. They rate it at 90 to 315 tonne-metres, and give an out-of-service jib parking radius of 15 m on a short counter jib.
- No A-Frame or Rope-Pulley System
ZOOMLION: against a traditional luffing jib crane, the A-frame, luffing mechanism and rope-pulley system are not required. They state that erection and dismantling efficiency is increased by 50%, and that each jib section can be taken off in the air.
- Fewer Containers
Fewer types of part, lighter and smaller. ZOOMLION state that against a traditional luffing jib crane, one 40 ft high-cube container is saved on the upper part.
The range — one of three

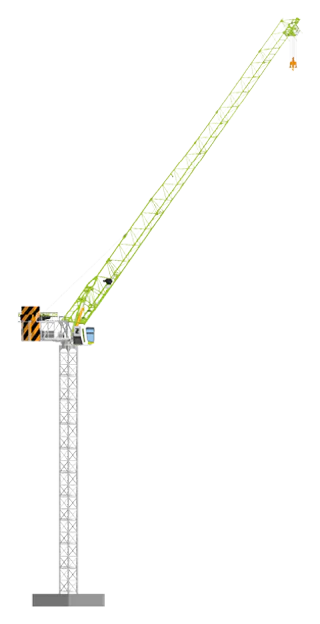

Topless Hydraulic Luffing Jib Cranes.
6 machines, from the RL90 at 6 tonnes to the RL315 at 25. ZOOMLION rate the series at 90 to 315 tonne-metres and publish it in two working modes.
Where two maximum loads are shown, ZOOMLION list the model in 2 builds — their RL165 sheet names them RL205-10/12 and RL250-12/16.
ZOOMLION publish no spec sheet for this model.
Jib 30 to 60 m. Luffs 10° to 87° on a hydraulic cylinder. Counter-jib ballast 30 t at every jib length. QnQ's own RL250-16RB is the Canadian-specification build: 480 V, 60 Hz supply, 75 kW hoist to 368 m a minute at single fall, 45 kW luffing cylinder (ZOOMLION manual RL250-16RB-138Z, June 2025).
ZOOMLION publish no spec sheet for this model.
Jib 30 to 50 m. Luffs 10° to 87° in 2 minutes on a 30 kW cylinder, and parks out of service at 10 m, 15 m or 60°. 380 V supply, 83.5 kW installed. Hoist to 95 m a minute. Counter-jib ballast 24 t at every jib length.
ZOOMLION publish no spec sheet for this model.
ZOOMLION publish no spec sheet for this model.
The range — two of three

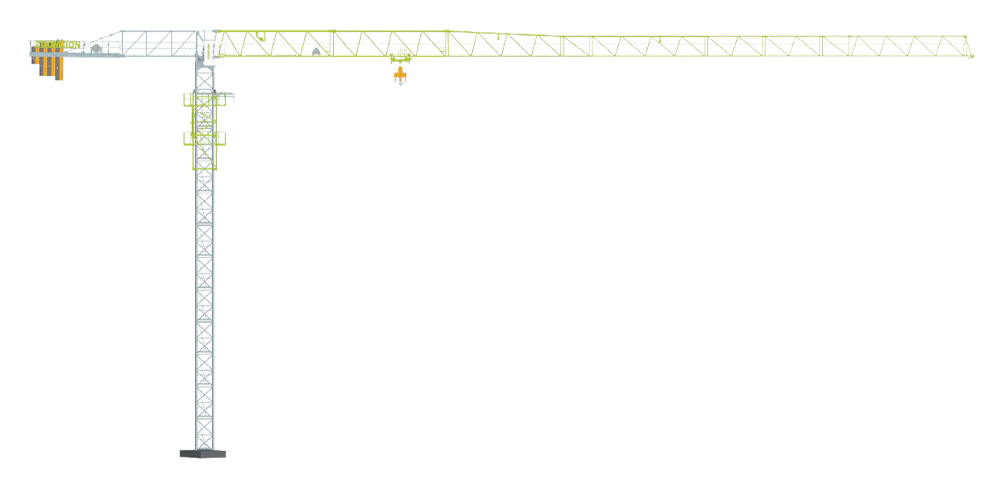

Flat-Top Tower Cranes.
12 machines, from the R90 at 5 tonnes to the R4300 at 200. ZOOMLION build the R series on their round tenon mast section and quote a thirty-year life for the upper and lower structure and the jibs.
Where two maximum loads are shown, ZOOMLION list the model in 2 builds — their R series brochure names them separately, for example R275-10RB and R275-12RB, with different hoist drum capacities. Free-standing height is ZOOMLION's figure for an outrigger base and, where a second figure follows, for a chassis base.
ZOOMLION publish no spec sheet for this model.
ZOOMLION publish no spec sheet for this model.
Jib 30 to 80 m, in 32 t and 64 t builds. 380 V supply, 274 kW installed plus 4 × 11 kW for travelling. Hoist to 85 m a minute.
Built to EN 14439, class C25. Jib 20 to 80 m, in 25 t and 50 t builds. 400 V supply, 215.5 kW installed excluding climbing. Hoist to 80 m a minute.
Built to EN 14439, class C25. Jib 25 to 80 m, in 20 t and 40 t builds. 400 V supply, 158.5 kW installed excluding climbing. Hoist to 140 m a minute.
Jib 30 to 85 m, in 16 t and 32 t builds. Free standing 61.2 m, or 61.8 m on a chassis. 400 V supply, 151 kW installed. Hoist to 172 m a minute.
Free standing 70 m, or 60.4 m on a chassis.
Free standing 70 m, or 60.4 m on a chassis. QnQ's own R275-12RB is the Canadian-specification build: 480 V, 60 Hz supply, 55 kW hoist to 145 m a minute, 66.1 m free standing on a chassis (ZOOMLION manual R275-12-138EN, June 2025).
Free standing 44.3 m, or 46.1 m on a chassis.
Free standing 50 m, or 51.8 m on a chassis. Hoist drum 440 m of rope in the 8 t build, 530 m in the 10 t.
Free standing 55.7 m, or 57.5 m on a chassis.
Free standing to 42 m, or 44 m on a chassis, in the R90-5RE build; 55.7 m and 57.5 m in the R90-6RA.
The range — three of three

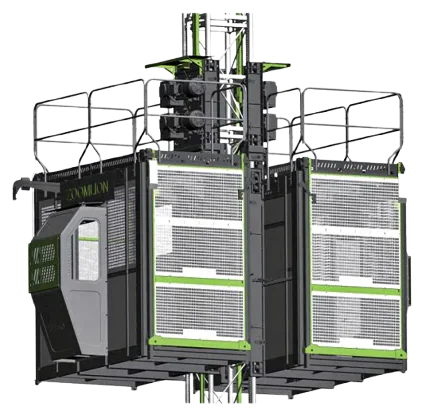

Construction Hoists.
14 configurations of the SC series listed for North America, single and double cage, with rated speeds from 40 to 90 m a minute and drive motors from 11 kW upward. The configuration code is ZOOMLION's own.
Several machines are catalogued in more than 1 configuration. Where a model name repeats, the configuration code is what separates the 2 builds.
ZOOMLION's construction hoist brochure gives a rated load of 400 kg for the SC40BD and 2,000 kg to 3,200 kg a cage for the SC200 and SC320 machines, and maximum installation heights from 200 m to 500 m depending on the configuration. It is on this page to download.
What the specifications mean on site
Jib length. ZOOMLION's own heading. The longest jib they list for the model.
Tip load. The load ZOOMLION quote at the jib tip, at that jib length.
Maximum load. The largest load ZOOMLION quote for the model. Where 2 figures appear, they list it in 2 builds — their R series brochure names them separately, for example R275-10RB and R275-12RB, with different hoist drum capacities.
Free-standing height. ZOOMLION's figure for how high the crane stands without ties, on an outrigger base and, where a second figure follows, on a chassis base.
Every figure on this page is published by ZOOMLION, either in their North American catalogue or in the documents below. Configurations vary, and we confirm the specification against your lift before quoting.
The source
ZOOMLION Documents.
The manufacturer's own spec sheets and brochures, as published. Every figure on this page comes from these documents or from ZOOMLION's North American catalogue.
PDF · 10.9 MB R630 Flat-Top Spec Sheet Load charts, mechanisms, ballast, reactions and transport units.
PDF · 1.3 MB R800 Flat-Top Spec Sheet Load charts, mechanisms, ballast, anchorages and transport units.
PDF · 1.4 MB R1000 Flat-Top Spec Sheet Load charts, mechanisms, ballast, anchorages and transport units.
PDF · 1.4 MB R1300 Flat-Top Spec Sheet Load charts, mechanisms, ballast and transport units, for both mast sizes.
PDF · 3.3 MB RL165 Hydraulic Luffing Jib Spec Sheet Load charts for all three working modes, mechanisms, ballast and transport units.
PDF · 7.0 MB RL250 Hydraulic Luffing Jib Spec Sheet Load charts for all three working modes, mechanisms, ballast and transport units.
PDF · 6.8 MB Construction Hoist Brochure Rated loads, speeds, motors, installation heights, mast sections, ties, cages and enclosures.
PDF · 26.4 MB Tower Crane Range Manual ZOOMLION's whole tower crane and hoist line, including the models above the North American range.
PDF · 13.0 MB
Also from ZOOMLION
The Rest of the ZOOMLION Line.
Our Canadian distributorship is for the tower cranes, but we supply the rest of the ZOOMLION line as well. Five more ranges, every figure published by ZOOMLION, each with the manufacturer’s own spec sheets to download. It is the same conversation and the same phone number.

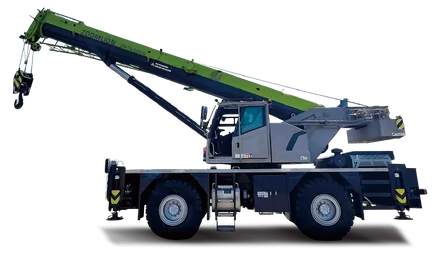

Mobile Cranes
5 rough-terrain cranes, 1 crawler crane and 1 telescopic boom crawler crane.
View the Range

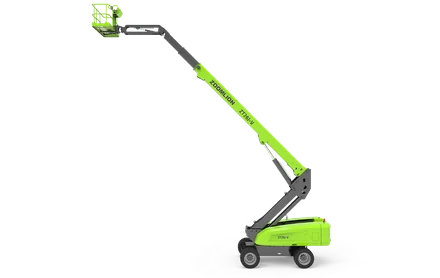

Aerial Platforms
ZOOMLION’s MEWP line: 6 scissor lifts, 3 articulating boom lifts and 3 telescopic boom lifts.
View the Range

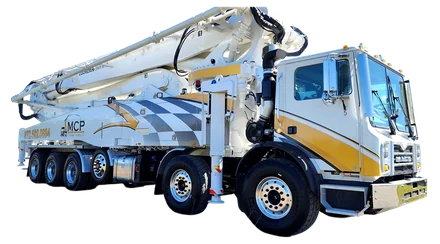

Concrete
5 truck-mounted concrete pumps and 2 placing booms.
View the Range

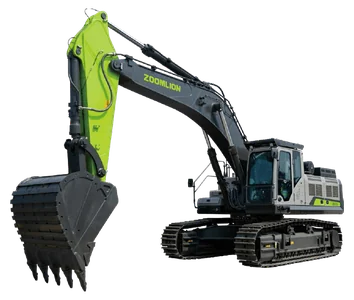

Earthmoving
10 excavators, and 5 skid steer and compact track loaders.
View the Range

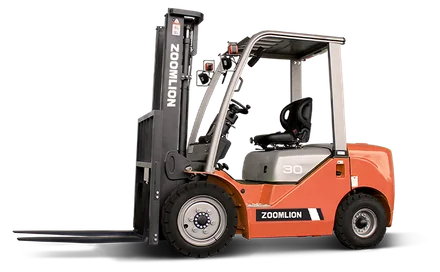

Forklifts
Diesel, LPG/CNG, electric and rough-terrain forklifts, pallet trucks, stackers and a reach truck.
View the RangeThe load charts
Take the Load Charts Away With You.
Leave an email and we will send the full ZOOMLION tower crane range with load charts, and nothing else. No call unless you ask for one.
Buying a crane
Straight Answers Before You Spend the Money.
If yours is not here, call. You will speak to someone who knows the machines.
Do you sell cranes as well as rent them?
Both. New or used, lease or purchase. Tell us the job and we will tell you which makes more sense for you — sometimes that answer is to rent.
What does sole distributor actually mean for me?
The ZOOMLION tower crane range comes into Canada through us. You are dealing with the people who supply the machine rather than a reseller in between, so the price, the lead time and the support after delivery all come from one place.
Why ZOOMLION rather than a name I already know?
ZOOMLION state that they have ranked first in the global tower crane manufacturers list for many consecutive years, and that they are the global leader in brand value, market share and sales revenue. Their range runs to the R20000-720, which they describe as the world's largest tower crane. The range listed for North America runs from the R90 flat-top at 5 tonnes up to the R4300 at 200 tonnes.
Where do the figures on this page come from?
ZOOMLION. Every figure is taken from their North American catalogue or from their own spec sheets and brochures, and those documents are on this page for you to download. Where two ZOOMLION documents give different figures for the same machine, we confirm it with them before quoting rather than choosing one.
What happens after the invoice?
We look after the machine once it is on your site. 20 years in this industry and our name rides on every unit we supply — that is the whole reason we are careful about what we sell.
Do you only do tower cranes?
Tower cranes are what we hold the Canadian distributorship for, and they are the core of what we do. We supply the rest of the ZOOMLION line as well — mobile elevating work platforms, earthmoving, mobile and crawler cranes, concrete equipment and forklifts. If the job needs a machine we do not have listed, we will source it.
